Multi Head Massager Gun YM-K60

The YM-K60 Multi-Head Fascia/Massage Gun is a unique percussion therapy device. Unlike traditional massage guns that feature a single reciprocating node, the YM-K60 stands out with a multi-striking mechanism (often a 4-axle or 6-link transmission layout) that delivers deep-tissue relief over a much broader surface area simultaneously.

​Key Technical Specifications

• ​Design & Layout: Multi-node striking interface covering a wide surface area (up to 22,300 mm^2) to target massive muscle groups effectively.

• ​Speed & Performance: Features up to 9 intensity levels (L1–L9) and 9 different vibration modes (P1–P9) to shift between continuous low-frequency muscle waking and intense high-frequency deep therapy.

• ​Amplitude & Power: Penetrates up to 21–22mm deep into the muscle tissue with a rated power of 10W–15W.

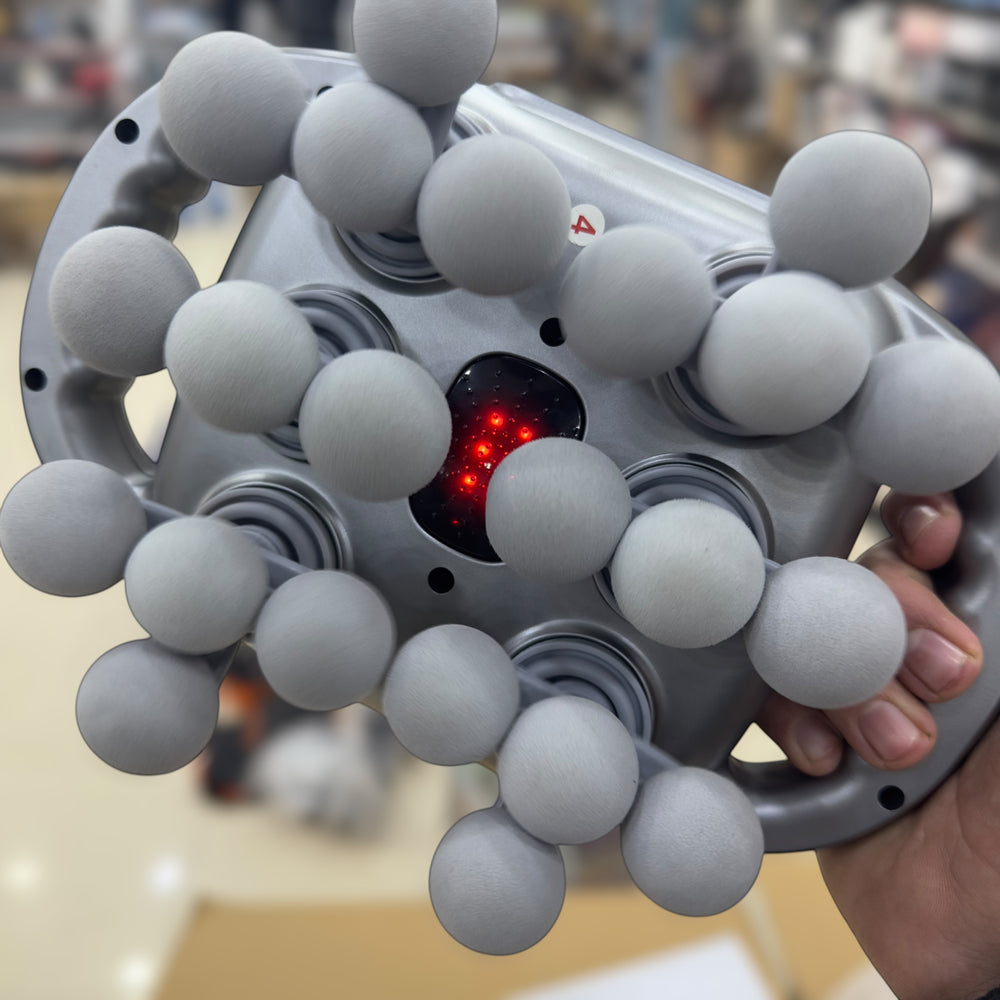

• ​Integrated Therapy: Features 630–650nm Red Light Therapy built into the nodes to promote cellular metabolism and boost localized blood circulation.

• ​Battery & Charging: Equipped with a 2000mAh rechargeable lithium battery providing roughly 1 to 2 hours of runtime per charge. Recharges via a standard Type-C port (5V/1A input) in about 3.5 hours.

• ​Safety Features: Includes an AI smart chip that initiates an automatic 10-minute shutdown timer to avoid tissue over-stimulation.

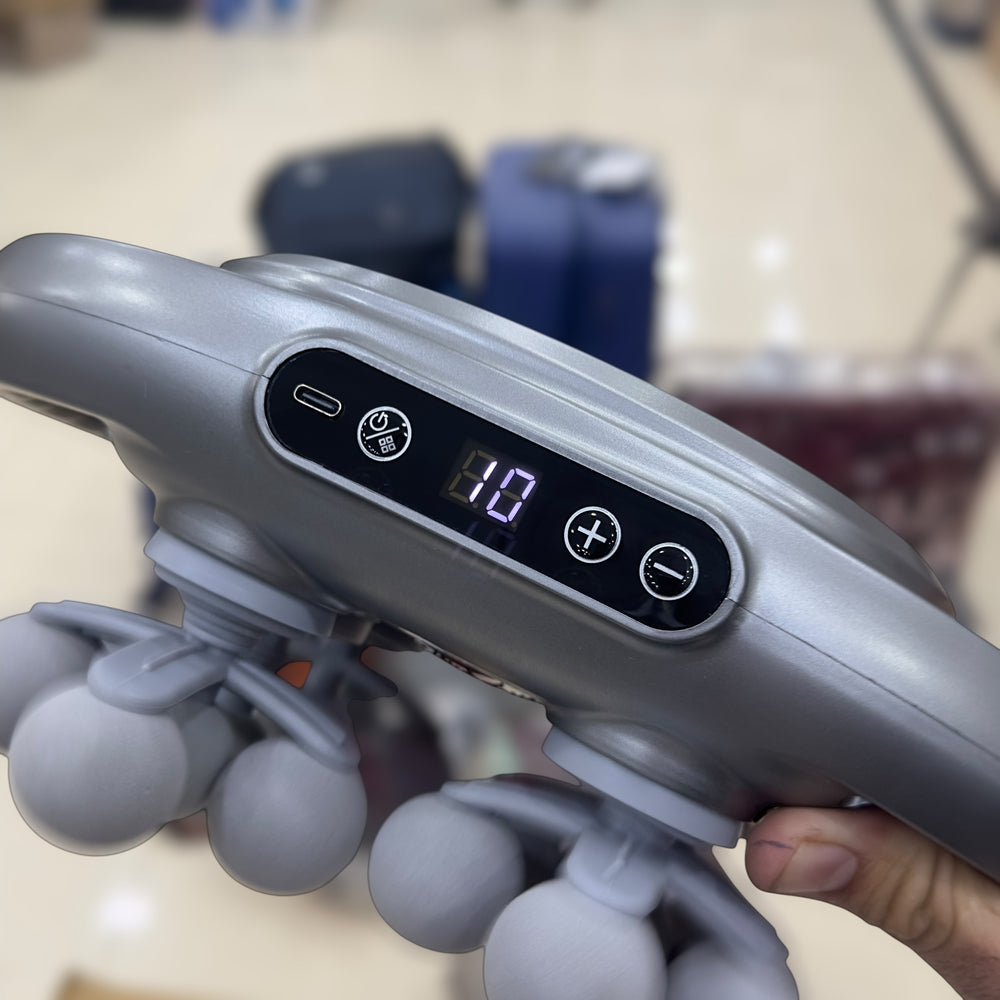

​Control Panel & Operations Overview

​The unit features a clear LED digital screen on the back with straightforward control dynamics:

• ​Power Button: Long press to turn the unit on or off. Short press to switch between the 9 operational vibration modes (P1 \rightarrow P9).
• ​Plus (+) and Minus (-) Buttons: Increases or decreases the stroke intensity levels (L1 \rightarrow L9).

• ​Display Dynamics: When configuring settings, the screen registers the speed/mode changes, then flips back to displaying a 10-minute safety countdown.
• ​Charging State: The white numeral indicator flashes when drawing power and remains completely illuminated once fully charged.

​Safe Usage & Maintenance Guidelines

​⚠️ Important Safety Warning: Do not apply excessive weight or force onto the gun's muzzle during active operation, as stalling the multi-link system can burn out the motor. Never submerge the device in water or operate it with wet hands.

• ​Demographics: Not intended for children under 6 years old. Adolescents aged 6–18 require direct adult supervision. Pregnant or breastfeeding women should completely avoid using it on the body unless expressly directed by a licensed physician.
• ​Contraindications: Absolutely prohibited for anyone suffering from hemorrhagic disorders (such as thrombocytopenia) or anyone using specific internal medical implants.
• ​Battery Health: If you plan to store the massage gun long-term without use, make sure it retains a partial charge and recharge it at least once every 6 months to prevent the 2000mAh cells from completely degrading.
